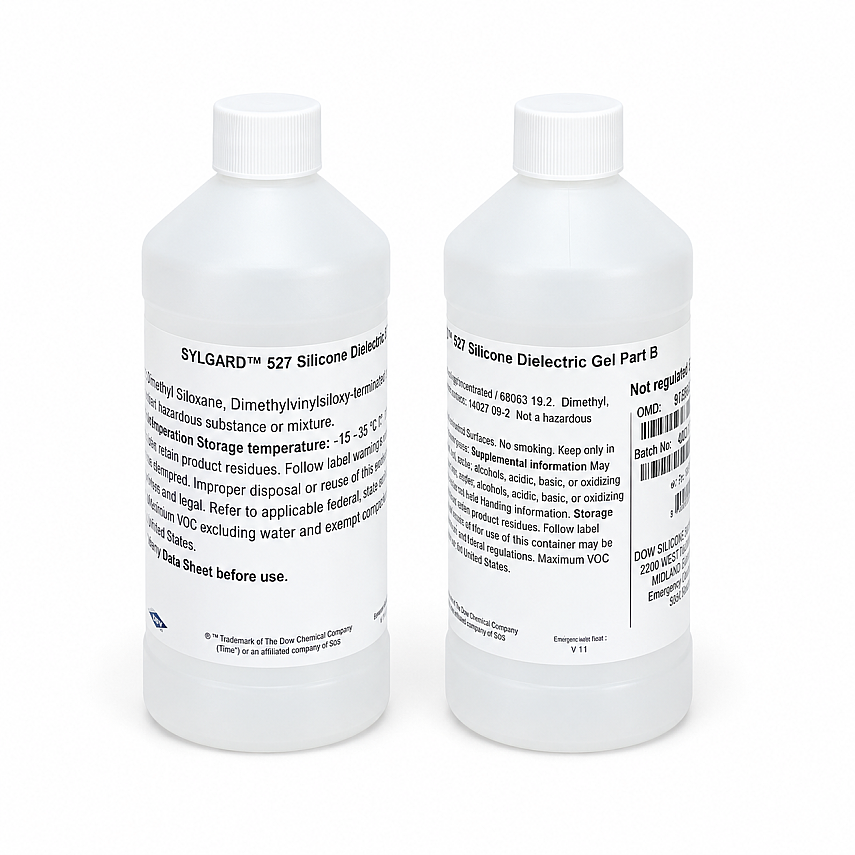

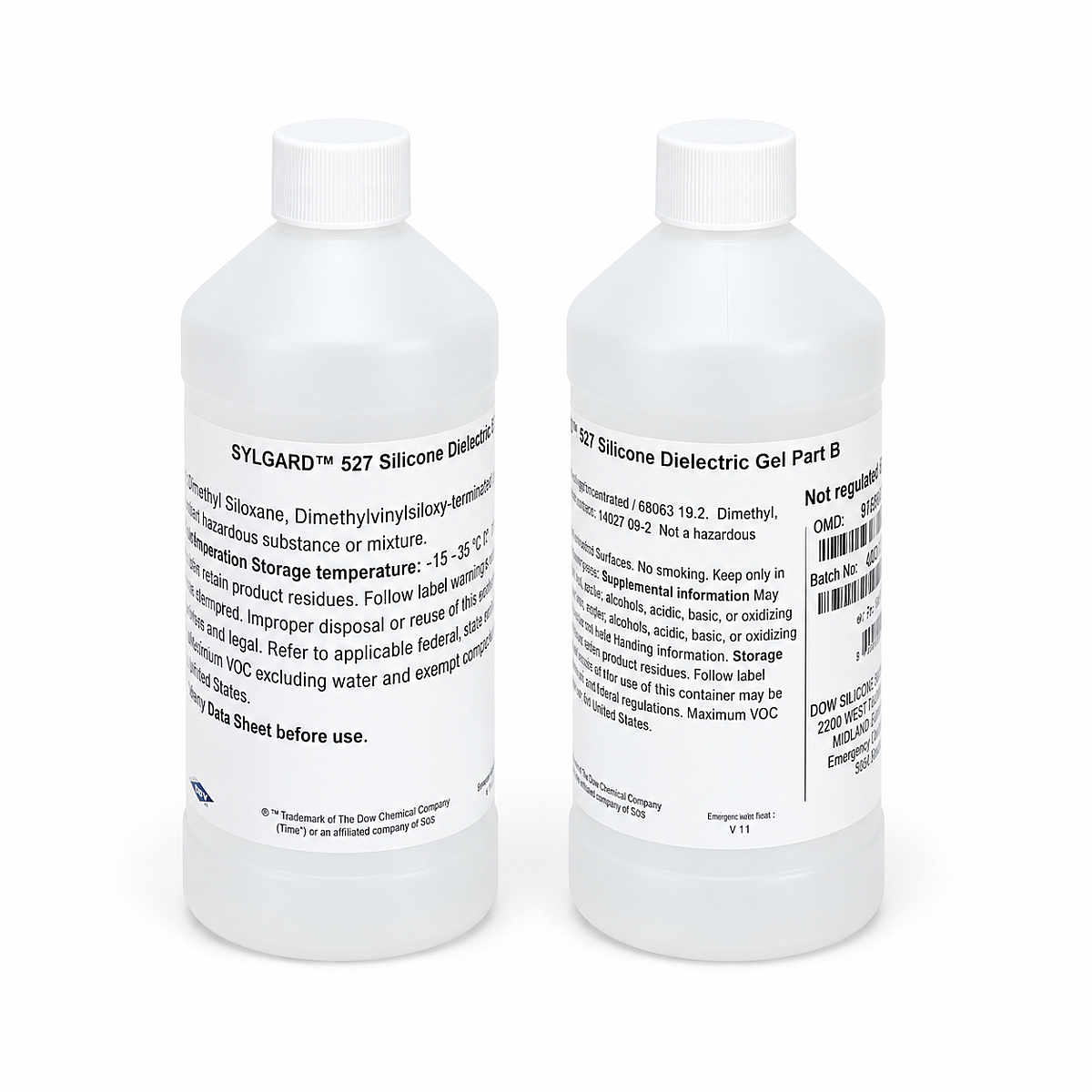

DOWSIL™ SYLGARD™ 527 Silicone Dielectric Gel Kit Clear 10 KG

Product Overview

DOWSIL™ SYLGARD™ 527 Silicone Dielectric Gel Clear is a 2-part (1:1 mix ratio), low-viscosity, soft dielectric silicone gel formulated to protect delicate electronics, micro-wire bonds, and power semiconductors from mechanical shock, vibration, moisture, and atmospheric contaminants. Utilizing a platinum-catalyzed addition-cure system, it cures at room temperature or with heat acceleration to form a clear, ultra-flexible gel with zero cure byproducts or volumetric shrinkage. Its self-healing property allows test probes to penetrate and retract without leaving permanent voids. The 10 kg kit (5 kg Part A + 5 kg Part B) offers excellent processing convenience for medium-to-large scale manufacturing and automated dispensing lines.

Key Features and Benefits

• Ultra-Soft Stress Relief: Extremely low durometer cushions delicate wire bonds and fragile solder connections against mechanical and thermal stress.
• 1:1 Convenient Mix Ratio: Simple 1:1 mix ratio by weight or volume simplifies manual preparation and automated dispensing.
• Self-Healing Capability: Penetrated by test probes, the gel re-seals around the insertion point to maintain continuous protection.
• High Dielectric Strength: Delivers exceptional electrical insulation and arc suppression for high-voltage power modules.
• Optical Clarity: Transparent gel matrix permits visual inspection of encapsulated components and sub-assemblies.
• Non-Corrosive Addition Cure: Releases no corrosive byproducts or solvents during cure, protecting sensitive circuit traces.

Technical Specifications

• Appearance / Color: Clear / Transparent
• Packaging / Net Weight: Kit / 10 KG (5 KG Part A + 5 KG Part B)
• Mix Ratio (by weight / volume): 1:1
• Cure System: Addition-cure (Platinum catalyst)
• Mixed Viscosity: ~450 mPa.s (low viscosity, excellent flow)
• Cured Consistency: Soft Gel
• Service Temperature Range: -45°C to +150°C (-49°F to +302°F)

Applications

• Encapsulation of sensitive power semiconductor modules (IGBTs), hybrid integrated circuits, and sensors.
• Moisture-proofing and vibration damping for automotive pressure sensors, temperature sensors, and accelerometers.
• Dielectric insulation for high-voltage electrical assemblies and terminal junction boxes.
• Environmental protection of fragile microelectronic components subjected to thermal cycling and physical shock.

Usage Note: Thoroughly mix Part A and Part B in a 1:1 ratio. Vacuum de-airing (degassing) prior to pouring is recommended to eliminate trapped air bubbles. Avoid contact with sulfur, amines, phosphorus, or organometallic compounds to prevent platinum catalyst cure inhibition. Suitable for manual benchtop dispensing and automated meter-mix processing equipment.
