Araldite AV 138 / HV 998 is a two-part structural epoxy adhesive system designed for high-temperature applications. It provides excellent mechanical strength, chemical resistance, and long-term durability on metals, plastics, ceramics, and composites.
Araldite AV 138 / HV 998 is a high-performance, two-component epoxy adhesive system. It cures at room or elevated temperatures to form a strong, heat-resistant bond. This system is ideal for industrial bonding applications requiring exceptional thermal and chemical resistance.
| Resin | Araldite AV 138 |
| Hardener | HV 998 |
| Mix Ratio (A:B) | 100 : 40 by weight |
| Color (mixed) | Light grey |
| Pot Life (25 °C) | Approx. 40 minutes |
| Cure Schedule | Room temp. or 2 h at 80 °C |
| Lap Shear Strength (Al) | 25–30 MPa (typical) |
| Glass Transition Temperature (Tg) | ~120 °C |
| Service Temperature Range | −55 °C to +130 °C |

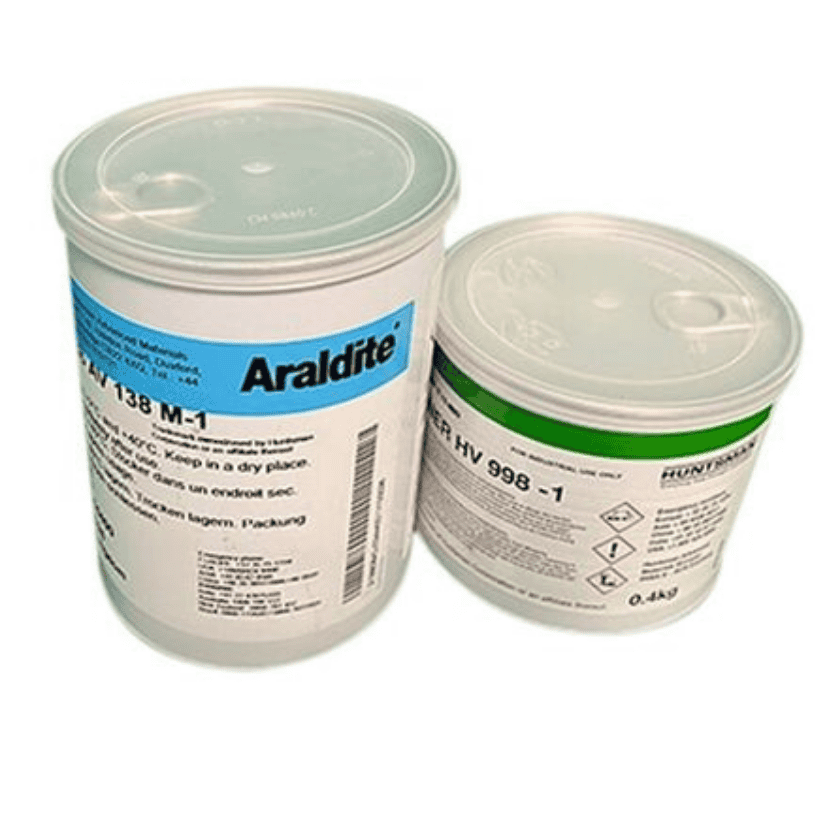

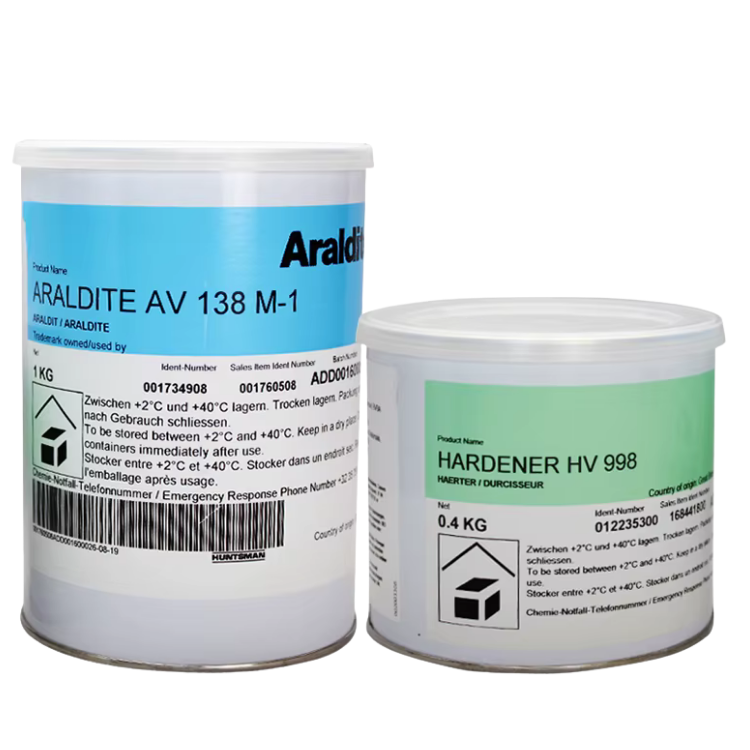

Set contents: 1 kg Araldite AV 138 resin + 400 g HV 998 hardener.
Below are the key technical resources for the Araldite AV 138 / HV 998 Epoxy Adhesive System. These documents provide detailed information on performance, application methods, and safety guidelines.
Note: Always consult the latest version of the TDS and SDS before use. Ensure proper surface preparation and follow recommended curing conditions for maximum performance.
