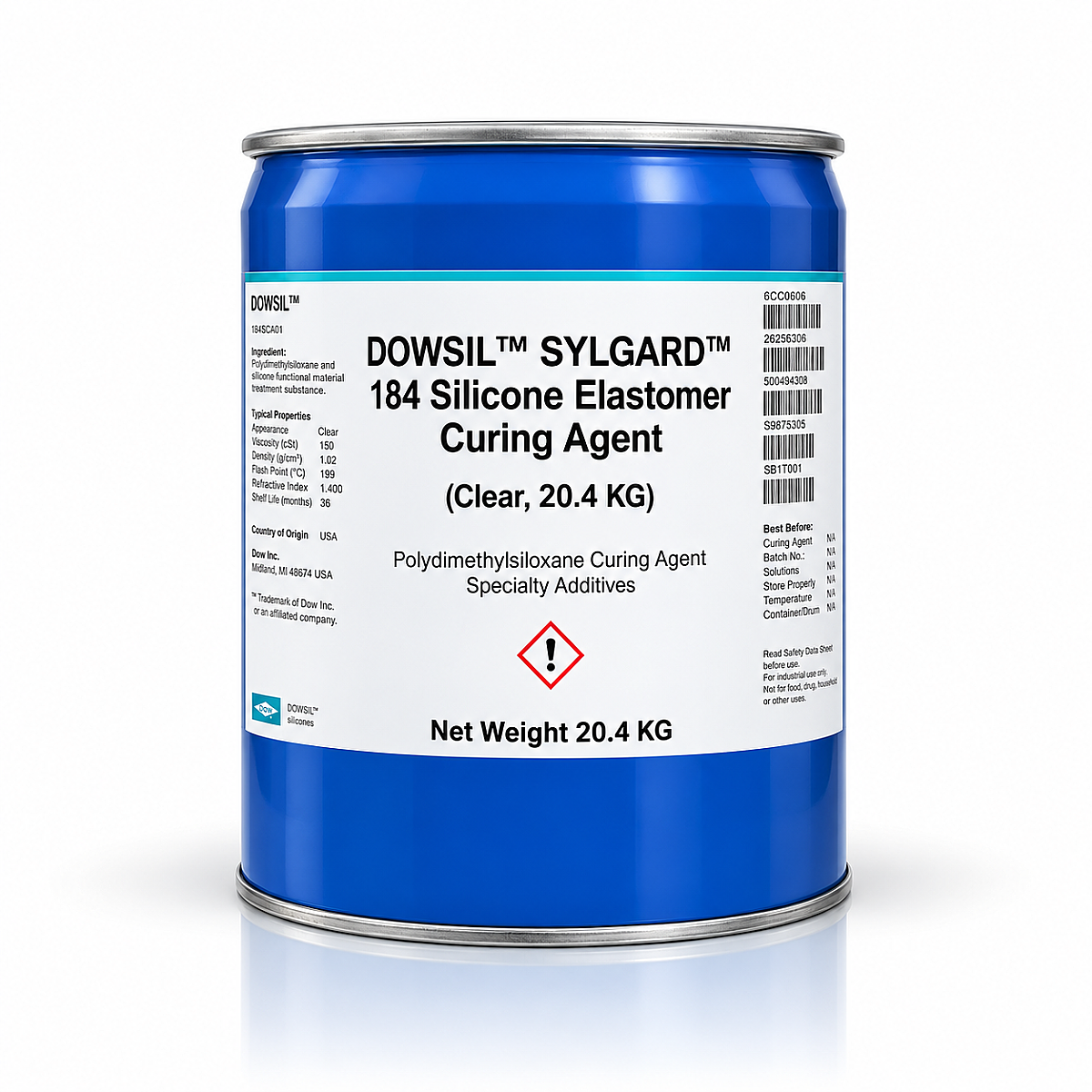

DOWSIL™ SYLGARD™ 184 Silicone Elastomer Curing Agent Clear 20.4 KG

Product Overview

DOWSIL™ SYLGARD™ 184 Silicone Elastomer Curing Agent Clear is the Part B (curing agent / catalyst) component of the industry-standard 2-part optical grade SYLGARD™ 184 Silicone Elastomer system. Formulated to react with SYLGARD™ 184 Base at a standard 10:1 mix ratio by weight, it cures into a flexible, highly transparent, non-corrosive silicone rubber matrix. The 20.4 KG bulk pail packaging is designed for industrial supply, automated meter-mix processing, or custom formulation ratios in continuous manufacturing operations.

Key Features and Benefits

• System Compatibility: Specifically formulated for optimal cross-linking performance with SYLGARD™ 184 Base.
• High Optical Clarity: Non-yellowing formulation ensuring high light transmission for optical and electronic encapsulation.
• Addition Cure Chemistry: Platinum-catalyzed reaction releases no corrosive byproducts and exhibits minimal volumetric shrinkage.
• Adjustable Modulus Capability: Allows slight ratio adjustments to fine-tune cured mechanical modulus for specialized applications.
• Bulk Industrial Packaging (20.4 KG): Cost-effective pail format ideal for high-volume automated meter-mix dispensing systems.

Technical Specifications

• Component Role: Part B (Curing Agent)
• Color: Clear / Transparent
• Packaging / Net Weight: Pail / 20.4 KG
• Standard Mix Ratio (by weight): 10 Parts Base (Part A) : 1 Part Curing Agent (Part B)
• Curing Agent Viscosity: ~110 mPa.s
• Cured System Hardness (Shore A): ~44-50
• System Temperature Range: -45°C to +200°C (-49°F to +392°F)

Applications

• Combined with SYLGARD™ 184 Base for transparent potting of optical sensors, solar cells, and LED modules.
• Fabrication of microfluidic devices, MEMS structures, and biomedical sensors.
• Environmental protection and potting of printed circuit boards and power modules requiring optical inspection.
• Bulk supply for automated meter-mix dispensing equipment on continuous production lines.

Usage Note: Mix thoroughly with SYLGARD™ 184 Base in a 10:1 ratio by weight. Vacuum de-airing (degassing) prior to pouring is recommended to eliminate trapped air bubbles. Avoid contact with sulfur, amines, organometallic compounds, or solder flux residues to prevent platinum catalyst cure inhibition.
